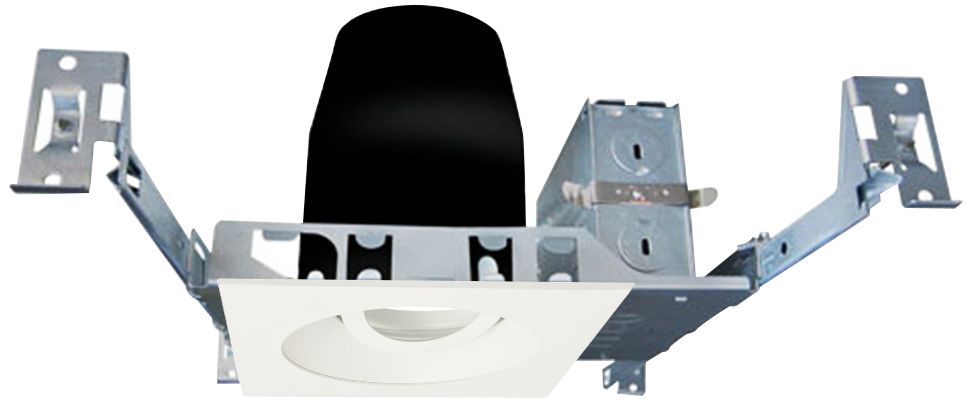

Find all you need for a successful lighting installation with this complete four-inch 950 lumen standard square reflector recessed lighting kit from Elco Lighting, which includes standard IC airtight new construction housing, powder-coated white finish Pex square deep reflector trim, and Koto LED module. Energy efficiency is a big bonus, as is the ability for smooth and continuous dimming with a separately purchased Triac or ELV dimmer. With die cast aluminum construction and steel housing, it offers a 38-degree beam angle, and convenient twist-lock design. This ENERGY STAR® rated kit is Title 24 and JA8-2016 compliant, and UL-listed for damp and wet locations.
Product Specification
- Housing is 8 3/4" wide x 6" deep x 5 1/2" high overall. Maximum hole cutout is 4 1/4".
- Trim is 5" wide x 2" high. 3 3/4" aperture. For use with Koto LED module. Compatible with 4" recessed housings.
- LED module is 2 1/4" wide at the top x 2" wide at the bottom x 3" high. For use with 3" or 4" Elco recessed housings and Koto twist-lock trims.
- Includes one dimmable 10 watt LED module. 950 lumen light output, comparable to a 60 watt incandescent. 3000K color temperature. 95+ CRI.
- LED averages 50,000 hours at 3 hours per day.
- Powder-coated white finish over die-cast aluminum trim. Steel housing. Die-cast aluminum LED module with frosted polycarbonate lens. Line voltage - 120V.
- IC-rated for use in direct contact with ceiling insulation.
- LED module has 38-degree beam angle.
- Convenient twist-lock design for easy installation.
- Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
